HDPE Geocell

Huatao Geocell is an innovative geosynthetic product providing cost-effective solutions for ground stabilization, erosion control and earth retention difficulties.

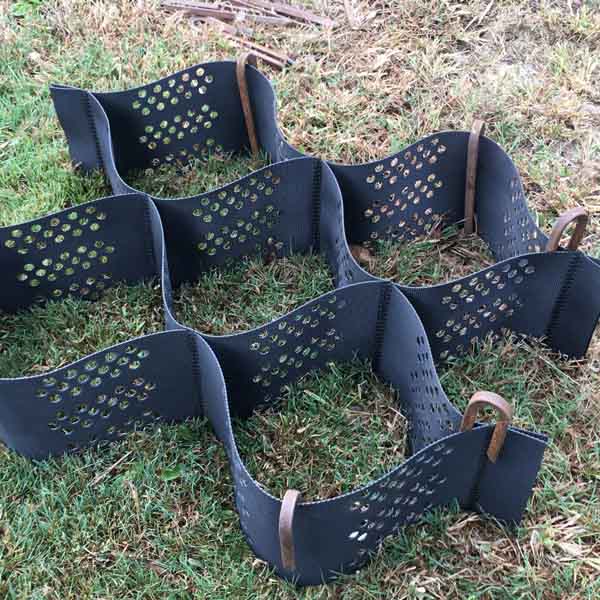

Huatao Geocell is a lightweight and flexible cellular structure made of polyethylene strips.
These strips are ultrasonically bonded together to from this extermely strong configuration.

Standard Type
Height:                   50mm,75mm,100mm,150mm,200mm
Thickness:              1.0mm, 1.1mm, 1.2mm, 1.5mm
Surface:                   Smooth | Textured
Perforated:              With | Without
Welding Distance:   330mm, 400mm, 450mm, 660mm, 712mm, customized
Peel Strength:          1000N/10cm | 1210N/10cm | 1420N/10cm
Color:                       Black, Yellow, Green

HDPE Geocell Construction method
1. Unfolding the geocell (Some fiber-material can be put under the geocell according to the concrete condition,for example geotextile and felted cushion.)
2. Fixing it with nail or connecting with the frame of stretcher
3. Used loader to fill with filler until it is full top and beyond of the geocell, then through vibration and rolling, the subbase is completed
4. By now, the system of geocell can prop up kinds of construction equipment, and that construction directly above it is accepted, together with conventional manner surface

Slope Protection
The geocell Slope protection system prevents sliding or sloughing off by providing sufficient weight at the foot and or along the face of the slope.

Earth Protection
The geocell earth protection system minimizes and eliminates erosion actions of wind and water on exposed soils.

Channel Protection
The geocell channel protection system protects channel slops from soil erosion and confines the infill material that from the channel bed and banks.

Ground Stabilization
The Geocell Ground Stabilization System provides cost-effevtive solution to ground stabilization project.

Vegetation Retention
The Geocell Vegetation retention system’s horizontal create a natural environment for sustainable vegetation and allow water to collect through the wall fascia, and minimizing runoff.
